Model NO.

W1 WIFI Outdoor Bullet Camera

Camera

Image Sensor

1/2.9"CMOS sensor

Resolution

3MP

Effective Pixels

2304(H)*1296(V)

Compression

H.265

Electronic Shutter Time

Auto（1 / 12s~1 / 100000s）

S/N Ratio

40dB

Scanning System

Progressive

Video Output

Wireless network

Reset Button

Yes

LENS Type

Focus Length

3.6mm F2.0

Focus Control

Fixed

Lens Type

Fixed

Pixels

3M Pixels

Night Vision

Infrared LED

14µ x 2PCS  +14μ x 2PCS White light

Infrared Distance

15-20M

IR Status

 CDS Auto Control

IR Power On

Auto Control

Network

Ethernet

RJ-45 (10/100Base-T)

Protocol

TCP/IP、UDP、HTTP、DDNS、DHCP、FTP、NTP

ONVIF

/

P2P

Support

POE

/

Main Stream 1

2304*1296@20fps

Main Stream 2

/

Main Stream 3

/

Sub Stream 1

640*360@20fps

Sub Stream 2

/

Sub Stream 3

/

Tri Stream

/

IE Brower

/

Smart Phone

support

Wireless

Antenna

3dbi

Hotspot

Support

Wi-Fi

Wi-Fi(IEEE802.11b/g/n)

WIFI Range

No obstacles 350m Max.

Camera Features

Day/Night

Color/ B&W (IR-CUT )

Minimun Illumination

0.01 Lux

Image Config

YES

Corridor Pattern

/

ROI

/

Defog  Mode

/

BLC

/

HDR

/

3DNR

Support

DWDR

Support

Motion Detection

Support

Privacy  Masking

/

Recording Mode

SDcard/Cloud Storagte

Language

Chinese、English

Interface

Audio

2-Way Audio

Alarm

Motion Detection

SD Card Slot

Support Max 128G

General

Housing

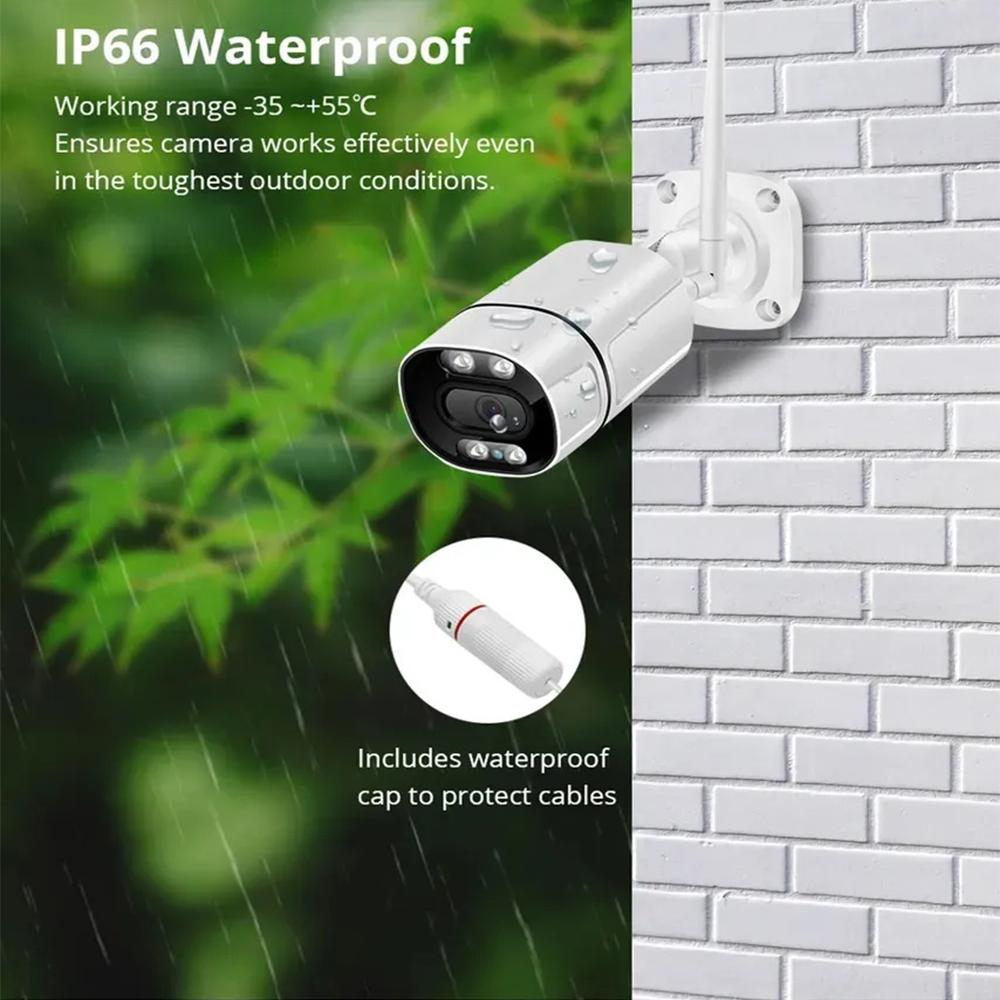

metal,IP66

Bracket

Support

IR Cut Filter

YES

Operation Temperature

 -10℃ ~ +50℃ RH75% Max

Storage Temperature

-20℃ ~ +60℃ RH75% Max

Size

230(W)x170(H)x130(D)mm
