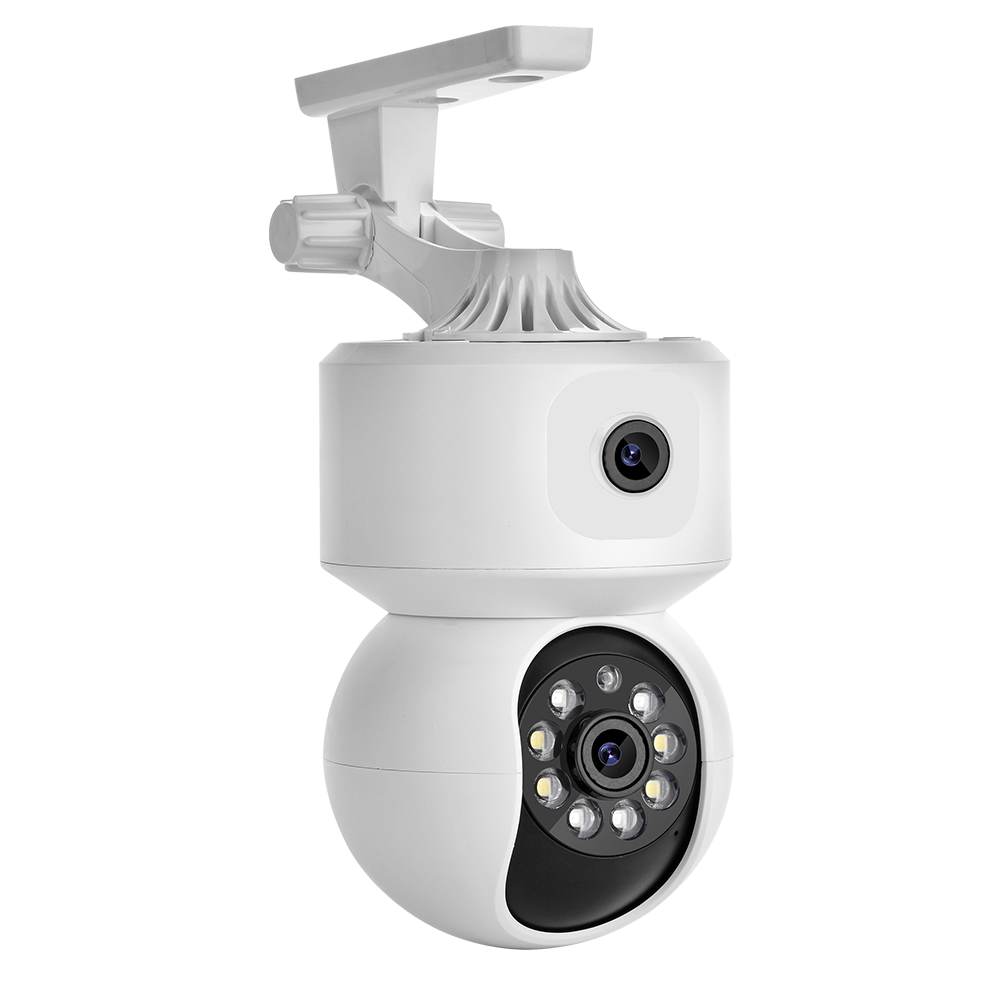

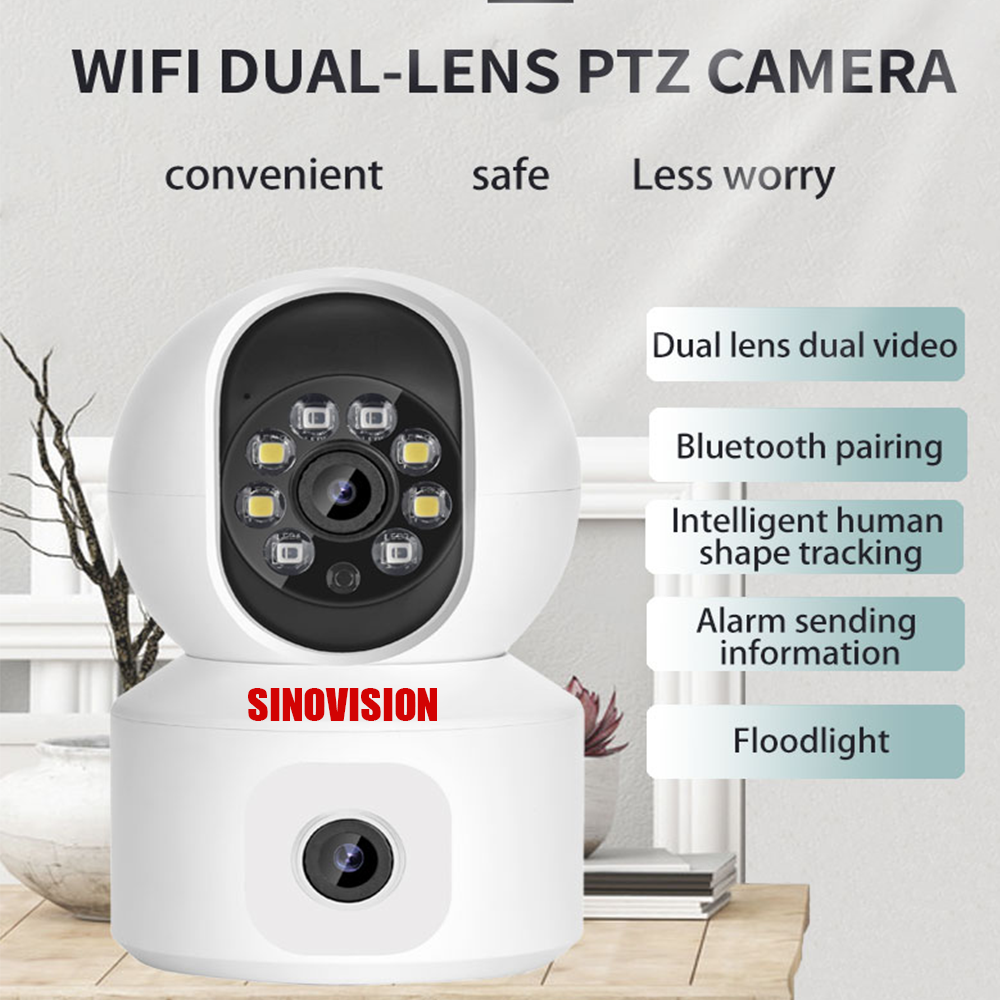

W11 Dual Lens WIFI PT Dome Camera
|
|
system
|
Main Processor
|
Dual-core 32-bit DSP, pure hard
compression, watchdog
|
|
image sensor
|
Two 1/2.8 "low illumination CMOS
sensors
|
|
Operation System
|
Embedded LINUX OS system
|
|
Video Compression
|
Smart H.265X
|
|
Video
|
High Definition
|
2*2MP
|
|
Image resolution
|
Main stream: 1920*2160@12fps; Sub stream:
640*720@12fps
|
|
Minimum illumination
|
0.1LUX/F1.2
|
|
Lens
|
3.6mm
|
|
Perspective
|
92°
|
|
|
Turn video
|
Upside down/Turn around
|
|
lighting
|
Light control mode
|
Full Color/Smart/Infrared Night Vision
|
|
Number of lights
|
6 PCS IR LED+ 6PCS White Light LED
|
|
PTZ
|
Look where you point
|
Support
|
|
PTZ control
|
Rotation Angle level :355°; Vertical: 90
°
|
|
Turn PTZ
|
Upside down/Turn around
|
|
Audio
|
Coding standard
|
G.711A codec standard, support two-way voice
intercom function, support audio and video synchronization
|
|
Mitou
|
Support
|
|
Two-way Speech
|
Support
|
|
Record management
|
Video file size
|
≈10G/day
|
|
Record Mode
|
Manual record, motion detection record,
scheduled record, alarm record
|
|
Video storage
|
TF Card/Cloud
|
|
storage
|
Local TF card, maximum 128G; Cloud
storage
|
|
Remote playback
|
Support
|
|
Image capture
|
Support
|
|
Network
|
WIFI
|
2.4G
WIFI 802.11b/g/n
|
|
Pairing
|
WiFi Smartlink distribution network
addition, AP hotspot addition, QR code scanning. Bluetooth fast networking
|
|
Network Protocol
|
Support TCP/IP, ONVIF, RTSP
|
|
extension
|
Reset key
|
Support
|
|
Human tracking
|
Support
|
|
360degree coordinate positioning
|
Support
|
|
power supply
|
Power
|
DC 5V
|
|
power interfac
|
Micro USB
|
|
work environment
|
Suitable place
|
outdoor、Home、shop、School、factory；
|
|
Installation mode
|
Wall mounted、hoisting
|
|
Working Temperature
|
-20℃－＋55℃
|
|
Working humidity
|
10%－90%
|
