Model
|
Model
|

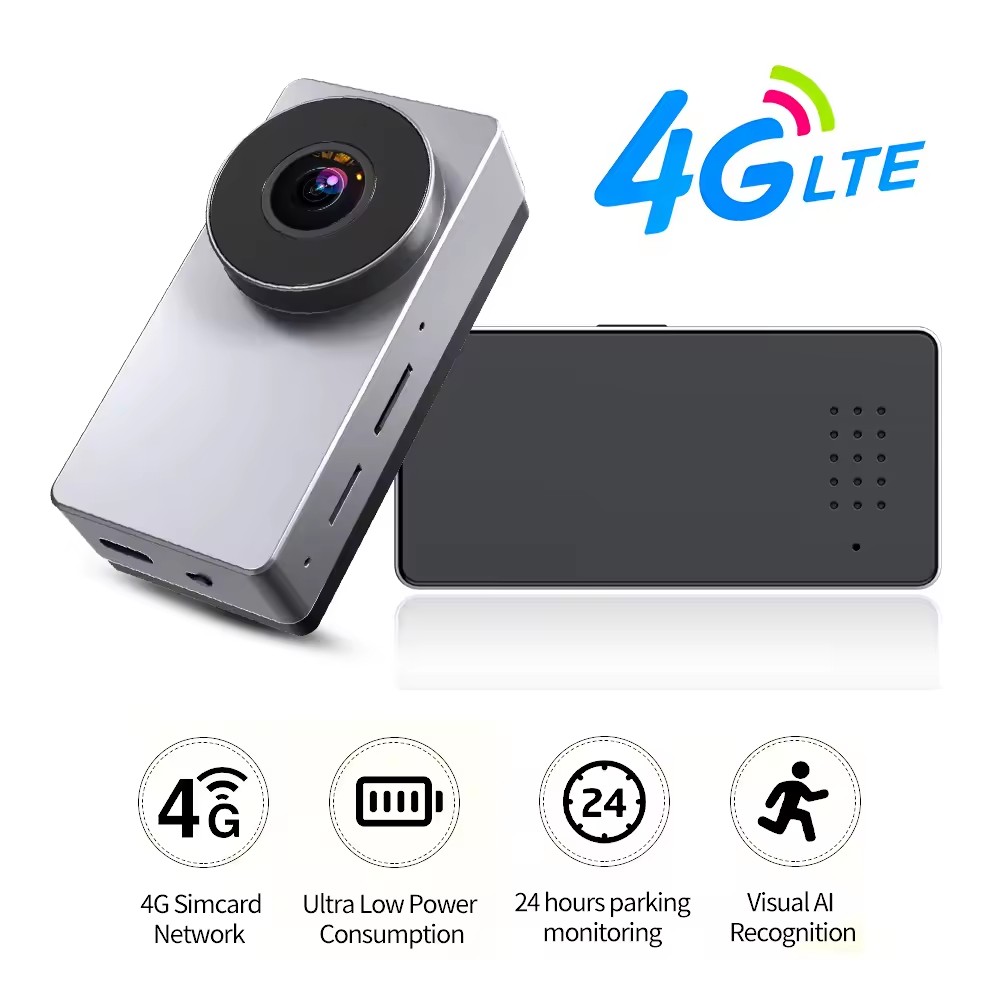

CC1 Car Camera
|
|
Device
|
Main Chip
|
T31Z
|
|
Image Sensor
|
1/3" Progressive Scan
CMOS
|
|
Lens
|
3.0mm@F2.0, View
angle:140°(Diagonal),118°(Horizontal),60°(Vertical)
|
|
Lens Mount
|
M12
|
|
Day&Night
|
IR-cut filter with
auto-switching
|
|
Microwave Radar
|
Detection
angle:120°(Horizontal)
Detection distance after penetrating the glass:3～4 meters
|
|
Interface
|
Storage
|
Micro SD card slot(Max.128
GB)/Cloud Storage
|
|
Audio In
|
Built-in MIC
|
|
Audio Out
|
Built-in 1W speaker
|
|
Button
|
Reset
|
|
Power Switch
|
ON/OFF
|
|
Compression standard
|
Video Compression
|
H.264
|
|
Video Bit Rate
|
Full
HD;Standard.Self-Adaptive
|
|
Audio Bit Rate
|
Self-Adaptive
|
|
|
Resolution
|
1920×1080
|
|
Frame Rate
|
Max:15fps;Self-Adaptive
during network transmission
|
|
Network
|
Device Pairing
|
Smart Sonic Wave Pairing
|
|
Protocol
|
Cloud Proprietary Protocol
|
|
Supported 4G Bands
|
LTE FDD:B1/B3/B5/B8
|
|
LTE TDD:B38/B39/B40/B41
|
|
LTE Category
|
Cat1
|
|
Power Consumption
|
Working
|
300mA/3.7V
|
|
Sleep
|
2mA/3.7V
|
|
Power Supply
|
Built-in Battery
|
Battery capacity:1500mAh,
Type-C: DC 5V±10%/2A
|
|
No Built-in Battery
|
Car Step-down line: DC
5V/2.5A ACC 5V
|
|
Others
|
Operating Conditions
|
-10℃～60℃,humidity 95% or
less(non-condensing)
|
