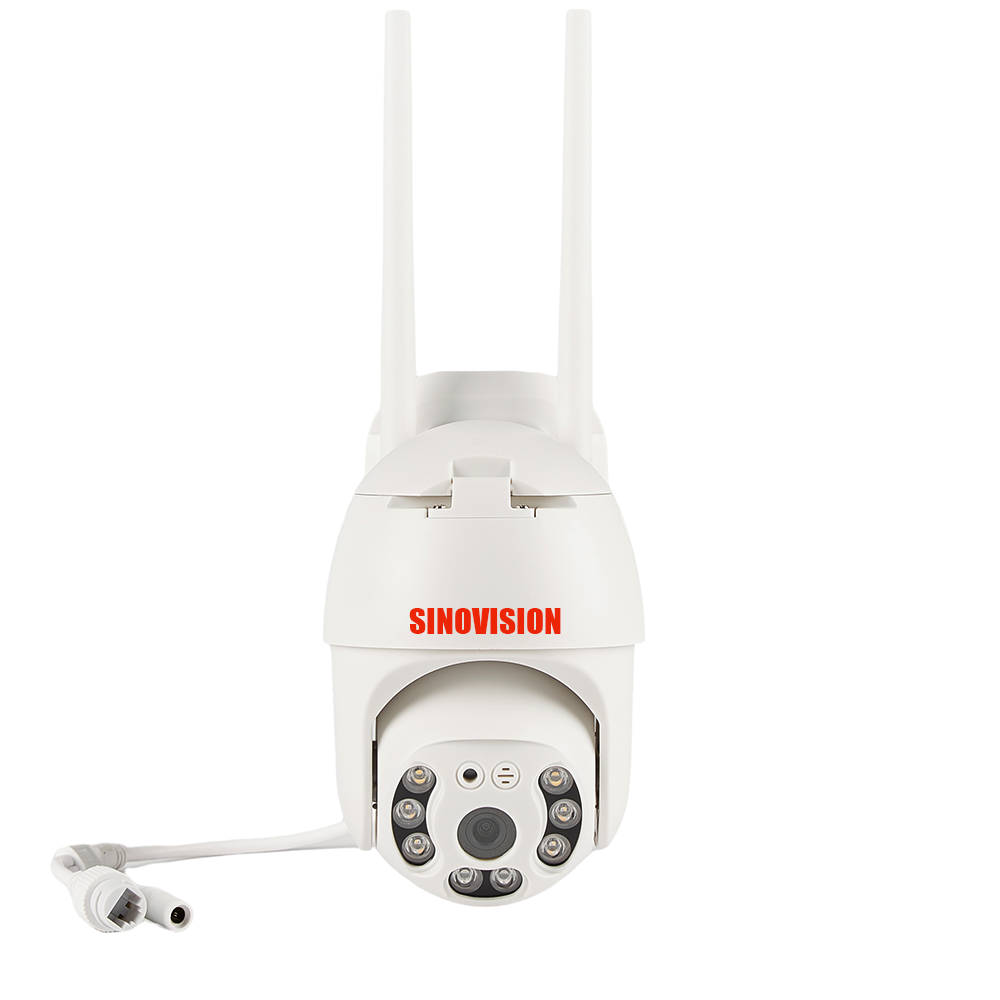

PTZ1 Wifi PTZ Dome Camera

PTZ1

Main Feature:

◆ 3MP/5MP/8MP, clear picture quality

◆ intelligent push, filter out useless information

◆ Support Android, IOS intelligent terminal remote real-time monitoring

◆ Support humanoid tracking,

◆ Wired and wireless automatic switching, in the environment of poor wireless signal, you can directly use the wired connection device and router, automatically switch to wired mode.

◆ Support TF card recording and cloud recording, TF card supports up to 128G

◆ Support cloud service Optional.

◆ Support two-way voice call function, module onboard power amplifier IC, can effectively eliminate echo, suppress noise, prevent distortion and other phenomena

◆ Support device sharing function (support sharing multiple friends) and device management identity transfer function

◆Infrared night vision and Spotlight Colorful Nightvision

Model	PTZ1 3MP/5MP/8MP WiFi PTZ Dome Camera
Image Sensor
Sensor	1/3" color CMOS sensor
Lens	3.6mm Fixed lens
Visual angle	H (horizontal) 67 degrees; V (vertical) 50 degrees; D (diagonal) 88 degrees
Minimum illumination	0.01Lux
Audio
Input/Output	Two-way voice intercom available (built-in Microphone and speaker)
Audio compression method	AAC
Video
Video compression method	H.264/H.265
Lighting frequency	50Hz, 60Hz
Image frame rate	15fps
Maximum Image Resolution	3MP/5MP/8MP
NightVision	4PCS WHITE LIGHT/4PCS Infrared Led,25Meter IR Distance/Colorful Nightvision
Network
Wireless Network	2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Protocols Supported	TCP/IP, UDP/IP, DHCP, RTMP, MUTP
AI
Intelligent function	Intelligent push, Humanoid detection
Alarm
Alarm detection	Motion Detection
Alarm linkage	Motion detection alarm, humanoid detection alarm, sound and light alarm, alarm video,
Alarm notification	Alarm push by mobile APP
PTZ
PTZ rotation angle	H (horizontal) 0° ~ 355°; V (vertical) -20° ~ 90°
Interface
Power Supply	1 Micro USB interface, DC 5V/1A
SD card	1 Micro SD card (up to 128GB)
Keys	1 function key
Other
Adjustable lens	Not adjustable
Video storage method	Micro SD card (up to 128GB) local storage, cloud storage
Install method	Ceiling or wall hanging
Environment

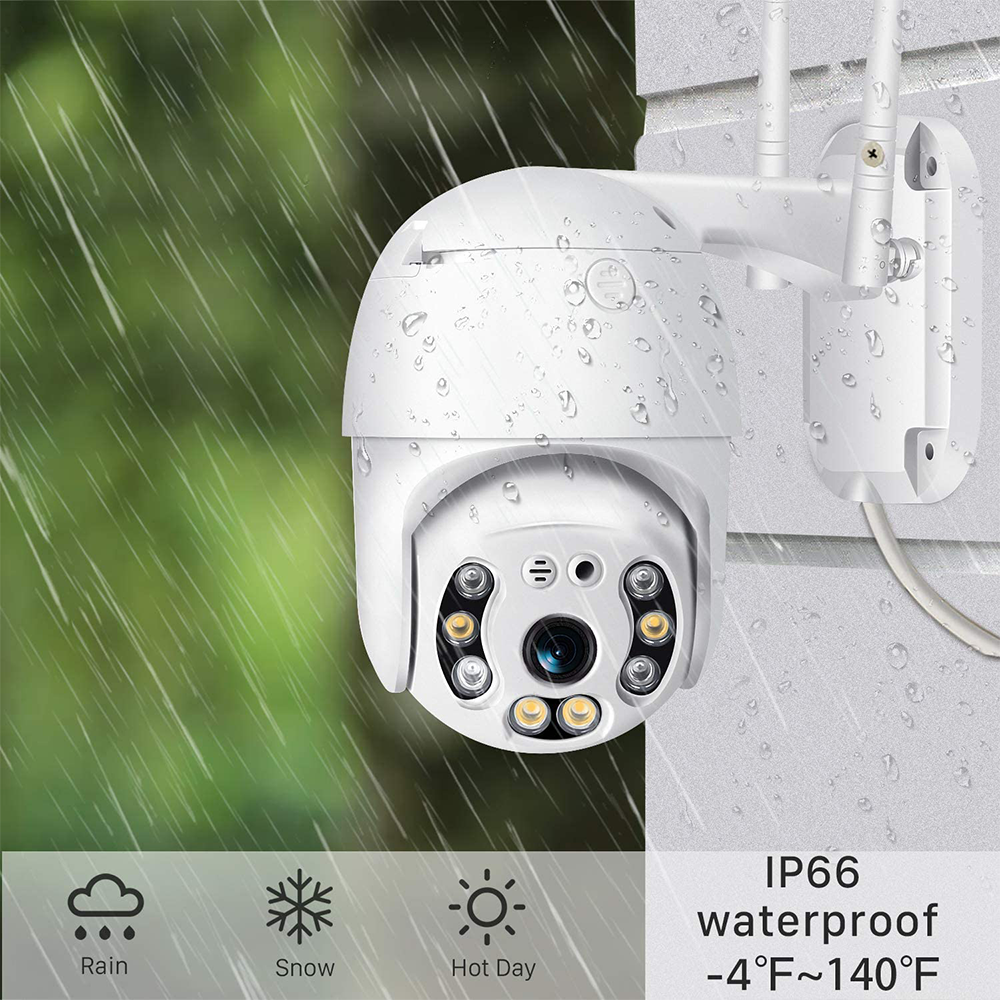

Dustproof and waterproof	IP66
Operating environment	-10° ~ 45°C /10% ~ 80% (no condensation)
Storage environment	-20°C ~ 60° /0% ~ 90% (no condensation)
Color
Appearance color	White
