Model

SN-WPK-9420DU

Package

NVR

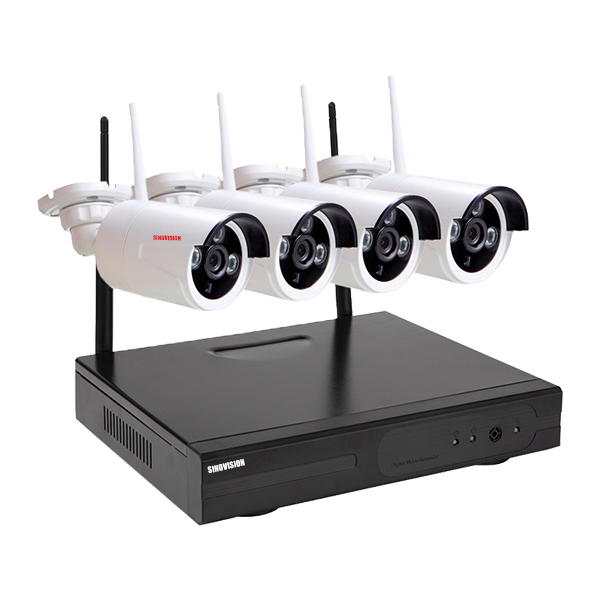

1x4CH NVR

Camera

4PCS WIFI IP PIR Camera

Mouse

1xUSB 2.0 Mouse

Adaptor

5PCS Power Adaptor,4PCS for Cameras, other one for NVR

Camera Type

2.0MP(1080P) WIFI IP PIR Camera

Sensor

Built in PIR Sensor

TV System

PAL/NTSC

Sync System

Internal

Mini Illumination

0.0Lux

Lens

3.6mm fixed lens

Night Vision

Infrared LED

2PCS IR LED+2White Light

PIR Distance

8-10M

Infrared Distance

20M

General

Weatherproof Housing

IP66

IR Cut Filter

YES

Operation Temperature

-10℃ ~ +50℃ RH95% Max

Power Source

DC12V±10%, 500mA

Video

Input

4Channel, IP

Output

1 VGA, 1 TV,1 HDMI

Audio

Input

4Channel, RCA

Two-way Audio

NO

Output

1 Channel, RCA

Alarm

Motion Detection

4Channel

Trigger Events

Recording, Tour, Alarm, Video Push, Email, Screen tips

Email Alarm

Send Pieces to The Designated E-mail

Recording

Video Compression

H.264

Audio Compression

G711A

Video Quality

Best/Fine/Normal

Record Mode

Manual\Timer\Motion Detection\Sensor

Playback & Backup

Sync Playback

4 Channel / 1Channel

Remote Playback

4Channel/ 1Channel

Search Mode

ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Rewind, Fast play, Slow play

Backup Mode

USB Device/Network

Network

Interface

1 RJ45 10M/100M Adaptive Ethernet Interface

Network Functions

HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,DST

CMS Software

Support Windows XP /Windows Vista/Windows 7/Windows 8

Extra Stream

CIF/QCIF(1~25fps)

Smart Phone

iPhone, ipad, Android ,Android pad

Hard Disk Driver

Interface Type

1 SATA Interface

Capacity

Up to 4 TB Capacity

General

USB Interface

2 USB 2.0 Interfaces

Power Supply

DC12V/2A

Working Environment

-10~55℃/10~90%
